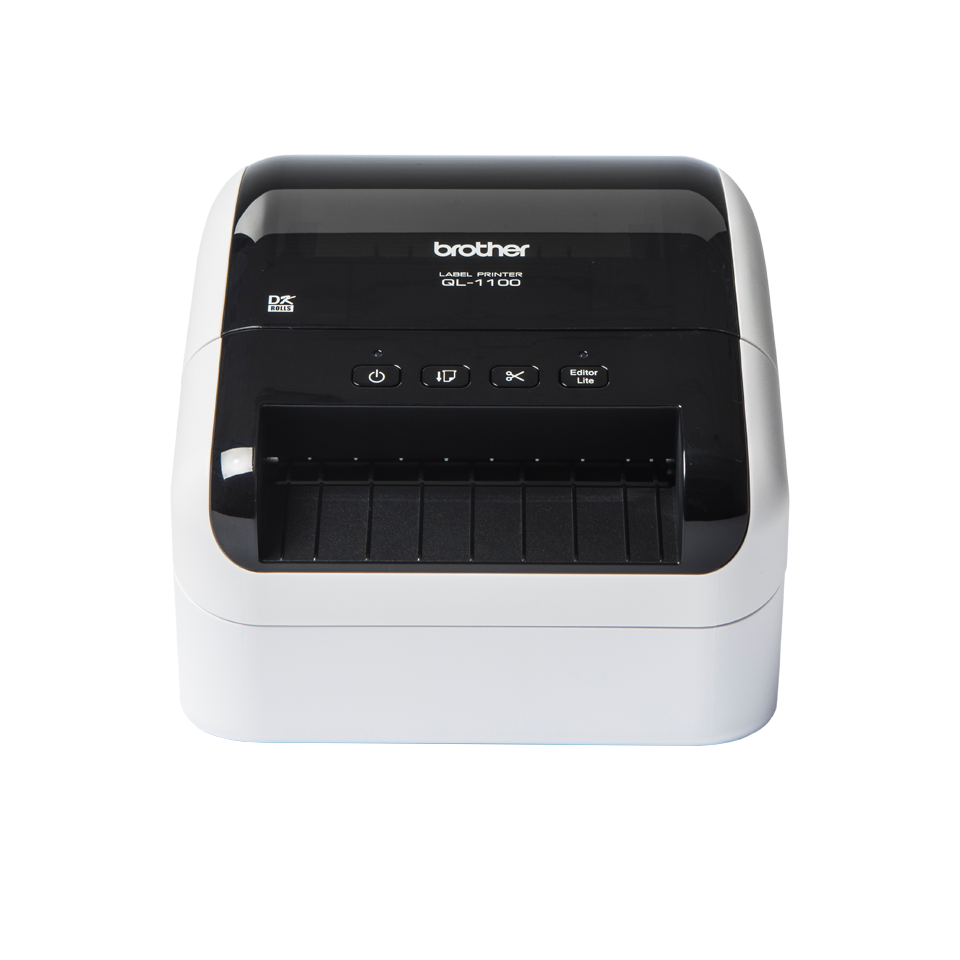

QL-1100 wide format shipping barcode label printer
For warehouses and mail rooms that require large shipping labels. Features a true 4 inch (101.6mm) print width and USB connectivity.Productinformatie
- Print labels up to 103.6mm wide and at up to 110mm/second print speed
- USB connectivity for PC and Mac
- Store up to 99 label templates in the printer's memory, then access and print using the built-in USB host function
- Supports printing of FBA (Fulfilled By Amazon) labels through a special PDF crop print function
- Built-in cutter to create your own length labels using continuous rolls
- Windows SDK (Software Development Kit) available to add label printing to your own apps
Beschrijving
Featuring a true 4 inch width (101.6mm) print head, the QL-1100 offers maximum compatibility with third party shipping label software packages from couriers and parcel delivery companies.
And for sellers who use the Fulfilled By Amazon (FBA) service, the special "PDF Crop Print" lets you print the PDF that contains the multiple barcode labels generated from your FBA account. The driver detects, extracts and prints each individual label to the QL-1100 automatically, making it easy to mark up your items to be shipped to Amazon.
This printer has full PC and Mac compatibility thanks to its USB connection, and the free P-touch Editor label design software that lets you add text, images and barcodes to your labels.
And the QL-1100 can easily be integrated into your own systems and software using the Windows SDK (Software Development Kit).
Specificaties
General
Machine Type | Aansluitbaar op PC, Desktop |
Database upload from PC | Ja |
Housing colour | Glanzend zwart en wit |
Image upload from PC | Ja |
Memory Locations | 99 |
Technology | Direct thermisch |
Template upload from PC | Ja |
Connectivity
USB interface | USB 2.0 Full Speed |
General Supplies
Rolls | DK doorlopende tape, DK voorgestanste labels |
Dimensions and weights
Dimensions | 170mm (W) x 222mm (D) x 151mm (H) |
Weight | 1.71 |
In the box
In the box | Gebruikershandleiding, Garantiekaart, Label Printer, USB-kabel, Installatiehandleiding, Netsnoer, Doorlopende labelrol, zwart op wit, breedte 62 mm (8 meter), Voorgestanste grote verzendlabels (41 labels) |
Operating systems & software
Windows | Windows 7, Windows 8, Windows 8,1, Windows 10, Windows 11 |
Supported Operating Systems | Ga voor de volledige lijst met compatibele besturingssystemen naar support.brother.com |
Printing
Bitmap Fonts | Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham |
One Dimensional Barcode Symbologies | CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
Printing Maximum Label Width | 103mm |
Printing Maximum Print Length | 3.000mm |
Printing Maximum Print Width | 101,66mm |
Printing Outline Vector Fonts | Brussels, Helsinki, Letter Gothic |
Printing Resolution | 300 x 300 (standard) |
Standard Print Speed (mm per second) (24) | 110mm per seconden |
Two Dimensional Barcode Symbologies | QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION, PDF417, MSI, Aztec |
Editor label design
Screen Capture | Ja |
Frames | 126 |
Software Sequential Numbering | 1 - 9999 / A - Z / a - z |
Software Text Alignment | Centreren, Links, Uitvullen, Rechts |
Software Vertical Print | Ja |
Solutions
SDK (Software Development Kit) | Ja |
Warranty
Warranty | 1 jaar carry-in garantie (na registratie) |
